Railway Electrification Systems: Railways are the backbone of modern transportation, and electrification has transformed how trains operate worldwide. The move from steam and diesel locomotives in India to electric systems represents not only a technological shift but also a sustainable step toward energy efficiency. Understanding railway electrification systems is essential for anyone interested in transport infrastructure, competitive exams, or simply learning how India and other countries are advancing in rail technology.
This article provides a detailed yet humanized look at railway electrification, covering its types, advantages, challenges, and future prospects.
Why Electrification of Railways Matters?
Railway electrification is more than just replacing diesel engines with electric wires overhead. It signifies:
- Reduced dependency on fossil fuels and a step toward green energy.
- Improved efficiency and speed, since electric locomotives can accelerate faster.
- Lower operating costs in the long run.
- A cleaner environment, with fewer emissions and noise pollution.
For a country like India, with one of the largest railway networks in the world, electrification is not just an upgrade; it’s a necessity for modernization.
Types of Railway Electrification Systems
Different countries adopt different systems depending on geography, cost, and power availability. The major railway electrification systems include:
1. Direct Current (DC) Systems
- Voltage levels: Commonly 600 V, 750 V, 1,500 V, or 3,000 V DC.
- Used in suburban and metro railways due to smooth acceleration.
- Example: Mumbai Suburban Railway initially used a 1,500 V DC system.
2. Alternating Current (AC) Systems
- Voltage level: 25 kV, 50 Hz AC is the most widely adopted.
- Suitable for long-distance, high-speed, and heavy-haul routes.
- Example: Indian Railways primarily uses 25 kV AC overhead lines.
3. Composite Systems (AC-DC Mix)
- Used where existing DC systems are upgraded to AC.
- Ensures compatibility during transition phases.
- Example: Conversion of Mumbai suburban rail from 1,500 V DC to 25 kV AC.
Comparison of Electrification Systems
The table below shows the comparison of the electrification systems in Indian Railways:
| Parameters | DC System | AC System |
| Voltage Levels | 600 V, 750 V, 1,500 V, 3,000 V | 25 kV (standard) |
| Infrastructure Cost | Higher (more substations) | Lower (fewer substations) |
| Efficiency | Moderate | High |
| Preferred Use | Suburban, Metro | Long-distance, Freight, High-speed |
| Example | Old Mumbai Suburban lines | Indian Railways main network |

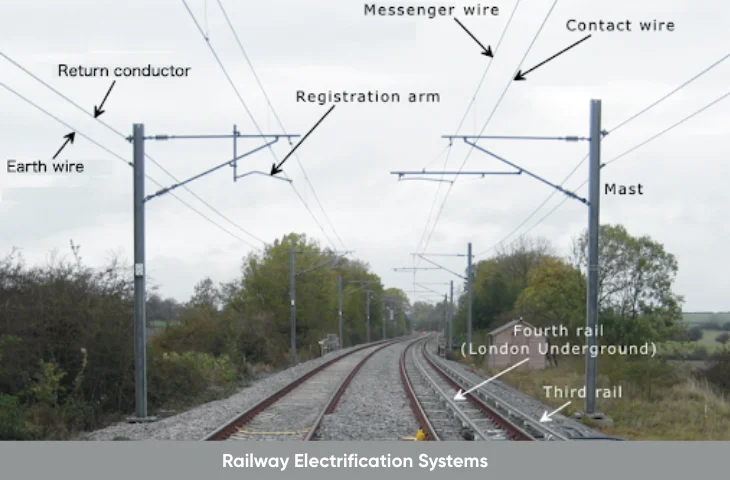

Components of Railway Electrification Systems
Electrification involves much more than installing overhead wires. The major components include:
- Overhead Equipment (OHE): Consists of conductors, insulators, and supporting structures.
- Traction Substations: Convert high-voltage power supply into usable form for trains.
- Catenary System: A combination of contact wire and messenger wire ensuring smooth current collection.
- Pantograph: A device on top of locomotives that collects electricity from the overhead wires.
- Feeder Lines: Supply power from substations to the overhead wires.
Advantages of Railway Electrification
There are various advantages of railway electrification. Some of these are given below:
| Particulars | Details |
| Economic Benefits | Lower fuel costs compared to diesel locomotives. Reduced maintenance costs due to fewer moving parts in electric engines. |
| Environmental Benefits | Zero on-site emissions, contributing to national climate goals. Quieter operations, reducing noise pollution in urban areas. |
| Performance Benefits | Higher hauling capacity and faster acceleration. Consistent performance in steep gradients and tunnels. |
Challenges in Electrification
Despite its benefits, electrification faces hurdles. The major ones include:
- High Initial Investment: Setting up substations, OHE, and infrastructure requires heavy capital.
- Maintenance Requirements: Overhead lines need continuous monitoring.
- Power Supply Dependency: Railways become dependent on grid stability.
- Conversion Issues: Existing diesel and DC systems require expensive upgrades.
Case Study of Electrification in Indian Railways
We have provided a case study of the electrification in the Indian Railway. Given below are the details:
- Target: 100% electrification by 2030 to achieve net-zero carbon emissions.
- Progress: As of 2024, over 85% of broad-gauge routes are electrified.
- Benefits for India:
- Reduced diesel import bills.
- Better integration with renewable energy sources like solar and wind.
- Enhanced speed and efficiency in passenger and freight services.
Future of Railway Electrification Systems
The future of railway electrification systems includes various projects. These are as follows:
- High-Speed Rail Projects: India’s bullet train project (Mumbai–Ahmedabad) will rely on advanced electrification.
- Green Energy Integration: Solar and wind farms are being connected directly to railway substations.
- Smart OHE Monitoring: Use of AI and IoT sensors to detect faults in real-time.
- Battery-Electric Hybrids: Some sections may adopt hybrid locomotives to cover non-electrified stretches.
Key Points of the Railway Electrification Systems
The key points of the Railway Electrification Systems are given below
- Railway electrification systems mainly consist of DC and AC setups, with 25 kV AC being the global standard.
- Electrification provides economic, environmental, and performance benefits, making it the backbone of modern railways.
- Challenges like high costs and infrastructure maintenance exist, but long-term savings and sustainability outweigh them.
- Indian Railways is moving rapidly toward 100% electrification by 2030, aiming for a greener, faster, and more reliable transport system.
Railway electrification is not just about powering trains; it is about shaping the future of sustainable transportation. With innovations like AI-based monitoring, renewable integration, and high-speed projects, the scope of railway electrification systems is rapidly expanding. For a country like India, achieving 100% electrification will mark a major leap toward clean, efficient, and modern mobility.
Also Read:
FAQs
Railway electrification systems mainly consist of DC and AC setups, with 25 kV AC being the global standard.
Electrification provides economic, environmental, and performance benefits, making it the backbone of modern railways.
Challenges like high costs and infrastructure maintenance exist in the railway electrification systems.
The target of Indian Railways is 100% electrification by 2030 to achieve net-zero carbon emissions
The types of railway electrification systems include AC, DC and composite systems.
